With Device Connection Relationships, OvrC now empowers integrators with a comprehensive and intuitive way to visualize and manage device connections throughout their power and network setup. This enhancement brings significant improvements to troubleshooting, device management, and sets the stage for even smarter automation in the future.

What Are Device Connection Relationships?

Device Connection Relationships allows integrators to map both power and network connections for supported Araknis, WattBox, and Pakedge devices. By defining which outlet or switch port a device is connected to, integrators can:

• Troubleshoot and resolve issues faster.

• Reboot devices directly from their page.

• View the status of the upstream device, all without navigating through multiple device pages.

• Easily jump to the connected device without having to return to the device list page and re-navigate to the device in question.

This results in accurate connection mapping, streamlined workflows, and lays the foundation for additional capabilities moving forward.

How It Works

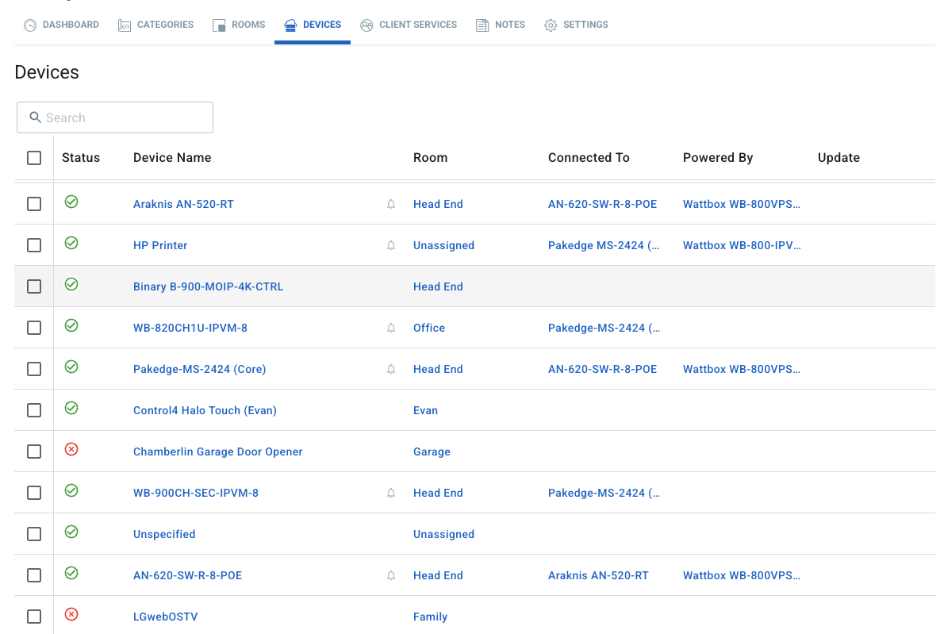

OvrC tracks and displays two types of connections for each device:

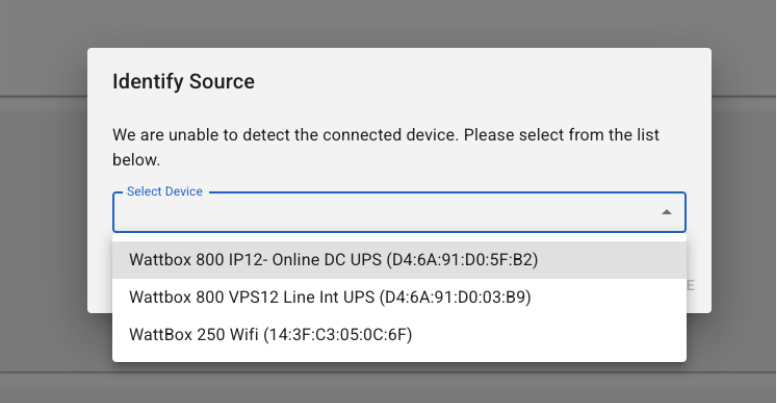

1. Power Connections: Shows which WattBox outlet a device is plugged into. You can quickly see the upstream device’s health and power cycle the downstream device with one click.

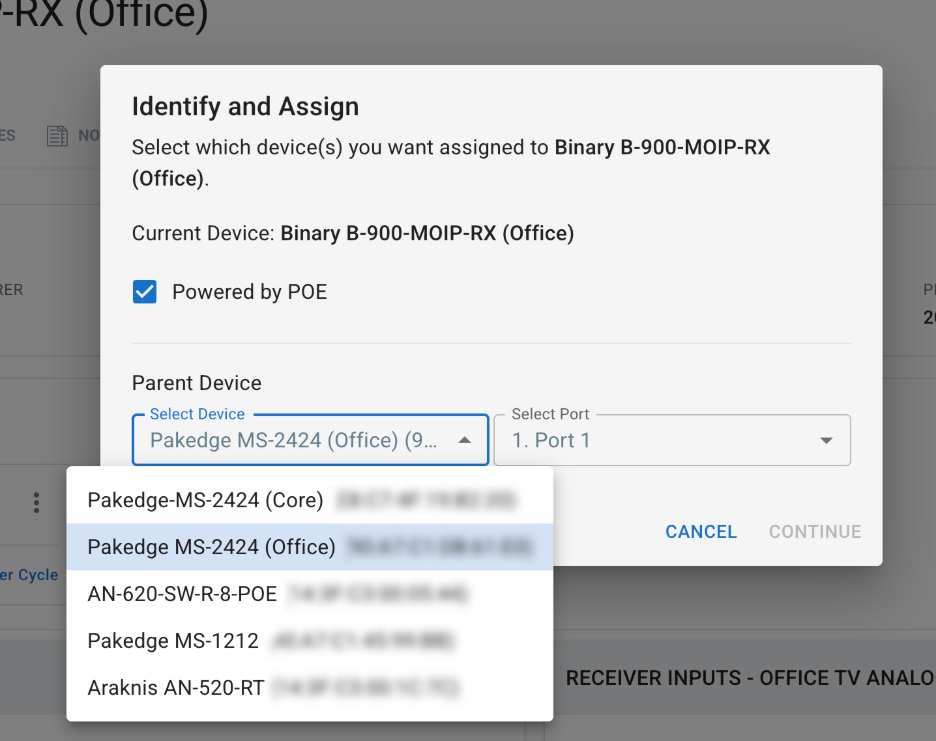

2. Network Connections: Shows which switch and port a device is connected to. You can view the upstream device’s status and perform network troubleshooting actions. For PoE-powered devices on supported Araknis or Pakedge switches, you can also toggle PoE on the mapped port to reboot the device.

On new Araknis X20 switches, these relationships are automatically mapped using traffic analysis and MAC address tracking; no manual setup required. For legacy switches (like Araknis X10 and Pakedge MS) or others), integrators can manually define these relationships for full visibility.

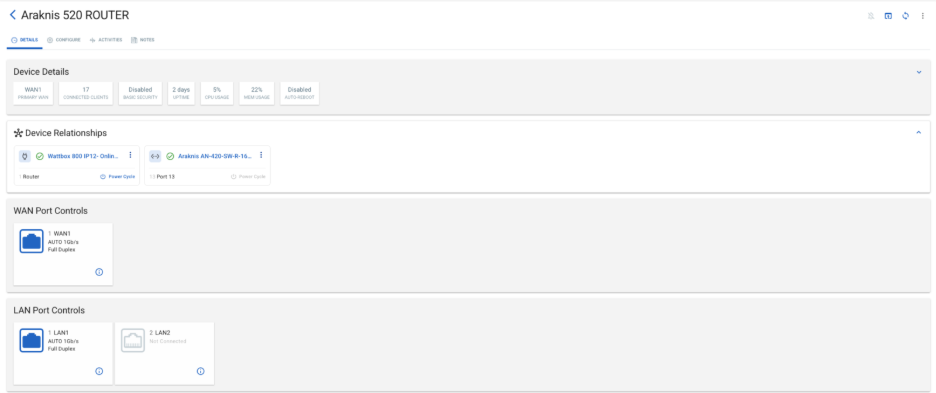

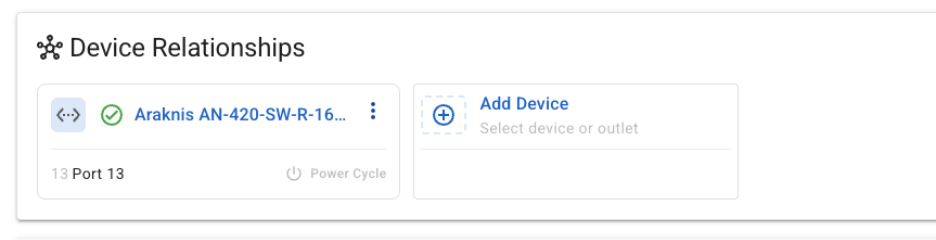

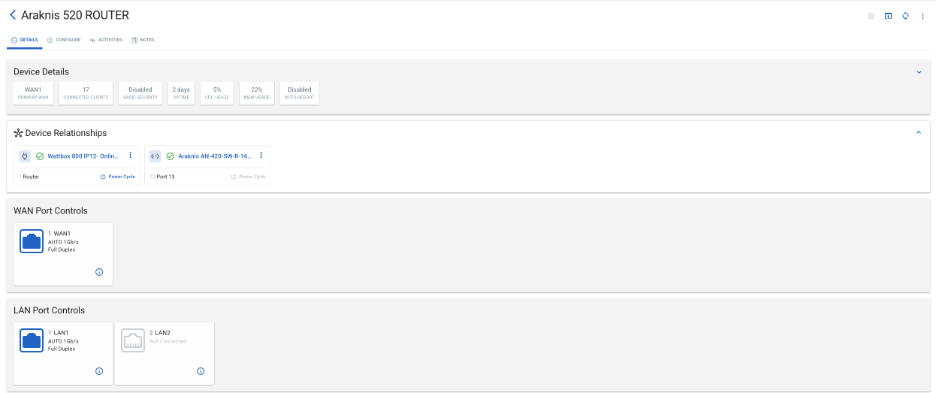

Once mapped, these relationships appear directly on the device’s page, making troubleshooting and control actions fast and intuitive.

Why This Matters

• Accurate Mapping: No more guessing or digging through multiple pages to find how devices are connected. OvrC now surfaces the exact upstream power or switch port right on the device page, directly addressing a top dealer frustration: having to leave a device page and dig through multiple WattBoxes just to power cycle it.

• Faster Troubleshooting: Instantly see and act on upstream/downstream status.

• Future-Ready: Lays the groundwork for upcoming smart automation features.

Ready to get started? Learn how to configure Device Connection Relationships and discover how automatic mapping works in the OvrC Manual.

‍

‍

Extend the Lux Look

Lux Mechanical Switches and GFCI Outlets extend the Lux design beyond automation, delivering an elegant solution for secondary rooms and wet‑location needs. Mechanical switches provide a design‑matched option for non‑smart and mixed installations, ensuring a clean, cohesive look alongside Lux keypads and dimmers or on their own.

In kitchens, bathrooms, and other wet locations, Lux GFCI Outlets meet safety requirements while maintaining an elevated appearance without compromising performance or code compliance.

Key Features

• Design‑matched Mechanical Switches for Lux aesthetic

• GFCI Outlets for kitchens, baths, and wet spaces

• Color‑matched across Lux keypads and devices

• Clean results in mixed smart and standard installs

• GFCI Outlets available in 15A and 20A versions

• Ships in white; Color Kits in all Lux Colors

Now Available

‍

Vibrant Smart Bulbs and Recess Trim Lights give Control4 Integrators a smarter way to deliver high-quality, dynamic lighting without the cost or complexity of luxury systems. With fully tunable white and select RGB Tunable White options, Vibrant creates immersive lighting experiences for any project. Wireless Zigbee 3.0 control and native Control4 commissioning, plus compatibility with standard sockets and recessed cans, remove specialty components and complex wiring, lower install risk while improving scalability and profitability.

Key features:

• Fully tunable white 1800K–6500K and select RGBTW color options

• Smooth 1% dimming for refined scene transitions

• Smart Bulbs fit standard Edison sockets

• Recess Trim Lights fit standard 4” and 6” recessed cans

• 92+ CRI for rich, accurate color rendering

• Native Zigbee 3.0 and Control4 commissioning

Note: Requires OS 4.2.1. Update available now!
